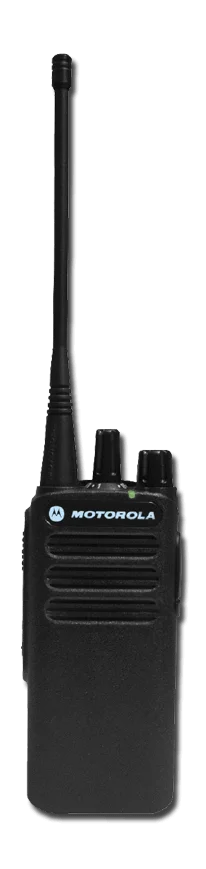

Motorola CP100d

Motorola

CP100d

The affordable CP100d radios offer all the benefits of digital technology – up to 35% longer talk-time, twice the voice capacity in a 12.5 kHz licensed channel, wider radio coverage, and superior audio. In digital mode, your MOTOTRBO radio provides clearer voice communications throughout the coverage area than analog radios, rejecting static and background noise.

Performance

Frequency Band:
VHF, UHF

Frequency Range:
VHF (136-174 MHz); UHF (403-470 MHz)

Power Output:
VHF: 1-5 W, UHF: 1-4 W

Number of Channels/Groups/Zones:
Non Display: 16 Channels
Display: 160 Channels

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
Analog: 10.7 hrs/Digital: 14.4 hrs

Channel spacing:
12.5, 25 kHz

Physical Characteristics

Dimensions H x W x D (with standard battery)
4.7 x 2.2 x 1.4 in (120.0 x 55.0 x 34.7 mm)

Weight (with standard battery)
Non-Display: 9.7 oz (276 g)
Display: 10.4 oz (295 g)

Keypad / Keys
Non-Display: None
Display: Limited

Display

User Enviroment

Operating temperature
-30°C / +60°C

Mil spec
810 D, 810 E

IP Standards
IP54

Analog/Digital: Get all the benefits of digital, including better voice quality, better range and better battery life—but retain compatibility with your existing radio fleet. With analog and digital capability, you have the freedom to migrate to the latest technology at your own pace.
Analog only: Purchase analog capability now and transition to digital capability when you're ready. All you will need is a simple software upgrade. Transmit Interrupt Capability (decode only): Enables a supervisor to interrupt a CP100d user to deliver critical communication exactly when and where it's needed.
Dual Capacity Direct Mode: Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel—without the need for a repeater.
IP54 Rated: Dustproof and splashproof, so you can work with confidence in challenging environments. Compatible with Radio Management Suite: Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.
